Zigovochnye machines Prinzing



                          Prinzing SM

Download instruction

PRINZING SM 50  - 1620



The manual creasing machine PRINZING SM 50 is used for working with thin-walled thicknesses up to 1.25 mm by pipes and shells. Zygovka is used where it is necessary to bend the edge of the pipe, make corrugation, roll convex or concave grooves-ridge, close the rebated connection or cut the shell. To work on the manual ringing PRINZING SM 50, you need an operator, which manages the workpiece and the second worker that drives the drive. Manual zigovka with success is suitable for single and small-scale production, it is good to work in the field on maintenance of heating mains, where there are no electrical networks. The manual creasing machine is lightweight, easy to transport, does not require additional maintenance. The basic version of the zigovka includes a hardened sheet stopper and a set of 9 pairs of rollers: V2, V4, V6, S6, BC, F6, BB, SK5, E20 with a 20 mm landing diameter.

Download instruction

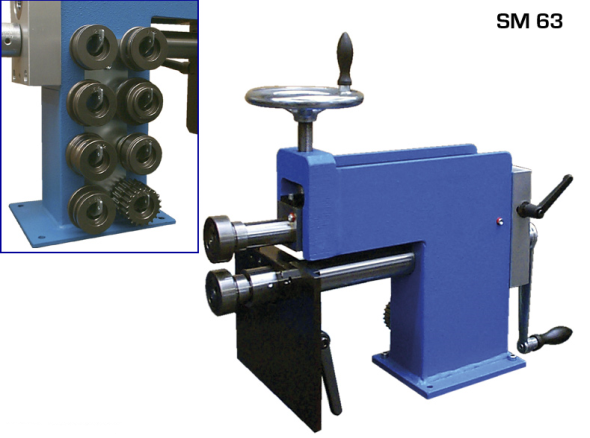

PRINZING SM 63 - 2000



The manual creasing machine PRINZING SM 63 is used for working with thin-walled pipes and shells up to a thickness of 1.75 mm. Zygovka is used where it is necessary to bend the edge of the pipe, make corrugation, roll convex or concave grooves-ridge, close the rebated connection or cut the shell. For work on manual ringing PRINZING SM 63, you need an operator who performs manipulations with the workpiece and the second worker that drives the drive. Manual zigovka with success is suitable for single and small-scale production, it is good to work in the field, where there are no electrical networks. The manual creasing machine is lightweight, easy to transport, does not require additional maintenance. A basic set of zigovki includes a hardened leaf stopper. A set of 9 pairs of rollers: V2, V4, V6, S6, BC, F6, BB, SK5, E20 or individual rollers can be purchased additionally. Zigovochnye rollers have a landing diameter of 25 mm.
Additional equipment:
Stand
Round stop (Rundanschlag) for inner round flanging

              Prinzing SME - Электромеханическая зиговочная машина

Download instruction

Prinzing SME 50 - 4500



Prinzing SME - Electromechanical chipping machine is a mobile, productive equipment equipped with a reliable drive. Due to the manual feed of the upper roller, not only is the process sensitive to good handling, but also the ability to handle complex shapes. Adjustable and hardened thrust plate allows you to set the size from the butt and improves the accuracy of the parts produced.

 The machine has a place for storing 9 pairs of rollers. Also, the support frame for the machine is optionally offered, which increases the stability.

 The SME machine drive provides infinitely variable speed control and has two speed ranges.



Download instruction

PRINZING SME 63 - 8000 €

The PRINZING SME 63 pressing machine with electric drive is used for working with thin-walled pipes and shells up to a thickness of 1.75 mm. Zygovka is used where it is necessary to bend the edge of the pipe, make corrugation, roll convex or concave grooves-ridge, close the rebated connection or cut the shell. To work on the PRINZING SME 63, you need one operator, which manages the workpiece and manages the modes of its work. The PRINZING SME 63 pinning machine is successfully suited both for single and for series production, has a drive from a two-speed motor and, with the help of the pedal, a smooth speed adjustment at two levels: the first 0-9 m / min and the second 0-18 m / min, reverse. The basic version of the zigovka also includes a hardened leaf stopper.

The additional equipment of the electric creasing machine PRINZING SME 63 can include:

stand for creasing machine

a set of 9 pairs of rollers: V2, V4, V6, S6, BC, F6, BB, SK5, E20 with a landing diameter of 25 mm.

round tempered stop for internal flanging

hardened stop 220x200 mm

Pneumatic feeder for the upper roller

Prinzing SME 125/4 P- 29450



SME 50 / P-125 / P industrial creasing machines are used for professional work in handicraft and industry. The drive motor can be single-stage, two-stage or stepless and is controlled by a foot pedal with safety control. The upper shaft is fed manually or mechanically via a PLC controller, for manual feed using a foot pedal. The machines are supplied with a parallel feed of the upper shaft.

As special equipment, it is possible to obtain, among other things, electrically adjustable pipe support or an electrically adjustable pipe direction device.

Prinzing SME 125/5P - 32520



The Prinzing SME 125 / 5P pressing machine with the electric drive and parallel movement of the upper shaft is designed for processing thin-walled metal shells up to 3.0 mm thick with a maximum rollout of 500 mm rollers. Zigovka is used where it is necessary to bend the edge of the shell, roll up convex or concave grooves, or cut the shell. Control of the machine by means of an electric switch and a double foot pedal, smooth adjustment of the engine speed, reverse, manual feed of the upper shaft. The Prinzing SME 125 / 5P creasing machine has a durable welded body, a thrust plate made of hardened steel, and a frame-support are included in its basic equipment.

Prinzing SME 160/7P - 83870



The Prinzing SME 160 / 7P pressing machine with electric drive and parallel movement of the upper shaft is designed for machining metal shells up to 4.0 mm thick with a maximum removal of rollers of 750 mm. Zigovka is used where it is necessary to bend the edge of the shell, roll up convex or concave grooves, or cut the shell. The basic machine includes a CNC control system with a Touch-Screen touch screen, a dual foot pedal, a smooth speed control of the main drive motor, a reverse, an electric drive for the upper shaft, programs with memory for 200 processing options. The Prinzing SME 160 / 7P creasing machine has a rugged welded body, a thrust plate made of hardened steel, and a frame-support are included in its basic configuration.

The secondary machine can be equipped with a centralized lubrication system with manual control. Rollers with a diameter of 63 mm are ordered separately in the catalog.

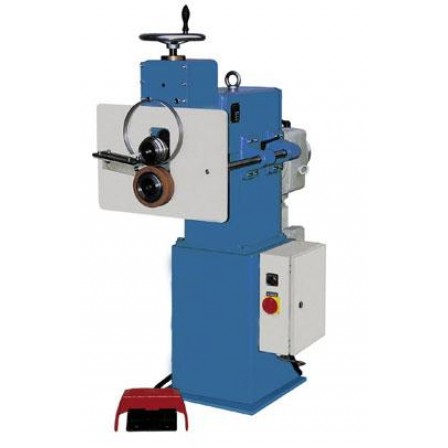

Prinzing SMS Prinzing SMS - The machine is for screed clamps. It is built on the basis of a zigzag machine, has a single-stage or two-level stepless drive. Manual feeding of the upper roller and controller.
Prinzing SME V - Электромеханическая зиговочная машина Prinzing SME V - The electromechanical creasing machine is used for an alternative way of placing the workpiece in the machine. Unlike the classical placement, this machine is designed so that the workpiece is placed horizontally. This is convenient for overall and difficult to transport parts.
Prinzing SDA - Two-sided creasing machine was created to increase the productivity of zygotics and is a specific equipment. In one working cycle SDA processes both sides of the workpiece at once. After the operator sets the workpiece in the machine, the machine automatically processes the part with high productivity and quality, after that the operator takes the part and the machine is ready for the next one. With this equipment, you can easily increase productivity with consistently high quality.
