Titanium coils from Roza Vetrov: a durable solution for galvanizing and anodizing
In the galvanizing, anodizing, and chemical industries, equipment operates in extremely aggressive environments: acidic and alkaline solutions, high temperatures, constant fluid circulation, and stringent process purity requirements. Conventional steel or copper coils quickly corrode, release foreign impurities, and require frequent replacement.
Titanium coils from Roza Vetrov provide a radical solution to these problems: they last several times longer, are resistant to corrosion in aggressive solutions, and ensure process stability for many years.
Why Titanium is the Best Choice
Titanium is one of the most chemically resistant metals. A durable oxide film forms on its surface, reliably protecting the metal even in concentrated acids, alkalis, and at high temperatures. The advantages of titanium coils are especially noticeable during galvanizing and anodizing:
Absolute corrosion resistance – titanium can withstand solutions of sulfuric, hydrochloric, and nitric acids, chromic acid, alkalis, and electrolytes.
Long service life – on average 10–20 years without replacement, reducing maintenance costs.
Clean process – titanium does not contaminate the electrolyte, does not release metal ions, and does not affect the quality of the coating.
Mechanical strength with a lightweight design – the coils can withstand high pressure and temperature, while remaining compact and easy to install.
Spiral and flat coils
Rose of the Winds manufactures two main types of titanium coils:
Spiral (screw) coils – compact, can be installed vertically or horizontally, and take up minimal space in the bath. They are ideal for uniform heating or cooling of the solution.
Flat (single-plane) – ideal for long galvanic baths or anodizing lines where uniform heating of large surfaces is required. They can be easily positioned along a wall or bottom.
Both designs are custom-made to customer specifications. Designs can be tailored to operating pressure, temperature, and required heating power.
Argon welding quality – a guarantee of reliability
Welding titanium is a technologically complex process. Any presence of oxygen or moisture in the weld zone leads to weld brittleness.
At Roza Vetrov, welding is performed exclusively in a protective argon environment using special technologies:
Full protection of the weld zone from the outside and inside.
Use of high-purity argon (99.99%) and modern TIG units.
Quality control of each weld includes visual, capillary, and hydraulic testing.
This ensures that the welds on the coils remain airtight even after years of use, and the risk of leaks is reduced to zero. Applications
Vetrov Rose titanium coils are used for:
heating and cooling solutions in galvanic and anode baths,
maintaining electrolyte temperature in galvanizing, chrome, and nickel plating lines,
working with chlorine-containing environments and concentrated acids,
thermostat control in the production of semiconductors, batteries, and specialty chemicals.
Titanium is indispensable where steel or copper deteriorates after just a few months.
Custom Manufacturing
We manufacture coils to custom dimensions:
we select the pipe diameter and coil pitch for optimal heat transfer,
consider the bath configuration, coolant inlet and outlet points,
calculate operating loads to eliminate the risk of deformation.
We can supply both individual coils and complete kits for an entire line.
Titanium heat exchangers for galvanizing and anodizing
Titanium coils from Roza Vetrov: a durable solution for galvanizing and anodizing
In the galvanizing, anodizing, and chemical industries, equipment operates in extremely aggressive environments: acidic and alkaline solutions, high temperatures, constant fluid circulation, and stringent process purity requirements. Conventional steel or copper coils corrode quickly, release foreign impurities, and require frequent replacement.
Titanium coils manufactured by Roza Vetrov solve these problems radically: they last several times longer, are resistant to aggressive solutions, and ensure the stability of technological processes for many years.
Why Titanium is the Best Choice
.jpg "Titanium coils") |
Titanium is one of the most chemically resistant metals. A durable oxide film forms on its surface, reliably protecting the metal even in concentrated acids, alkalis, and at high temperatures. Therefore, titanium performs exceptionally well even in applications where acid-resistant stainless steels fail. |
The advantages of titanium coils are particularly noticeable when galvanized and anodized:
♦ Absolute corrosion resistance - titanium can withstand solutions of sulfuric, hydrochloric, nitric acids, chromic acid, alkalis and electrolytes.
♦ Long service life - on average 10-20 years without replacement, which reduces maintenance costs.
♦ The process is clean – titanium does not contaminate the electrolyte, does not release metal ions and does not affect the quality of the coating.
♦ Mechanical strength with a lightweight design – the coils withstand high pressure and temperature, while remaining compact and easy to install.

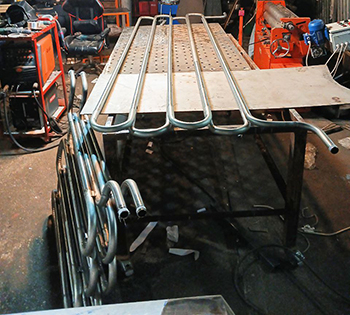

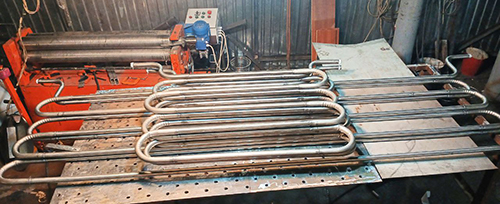

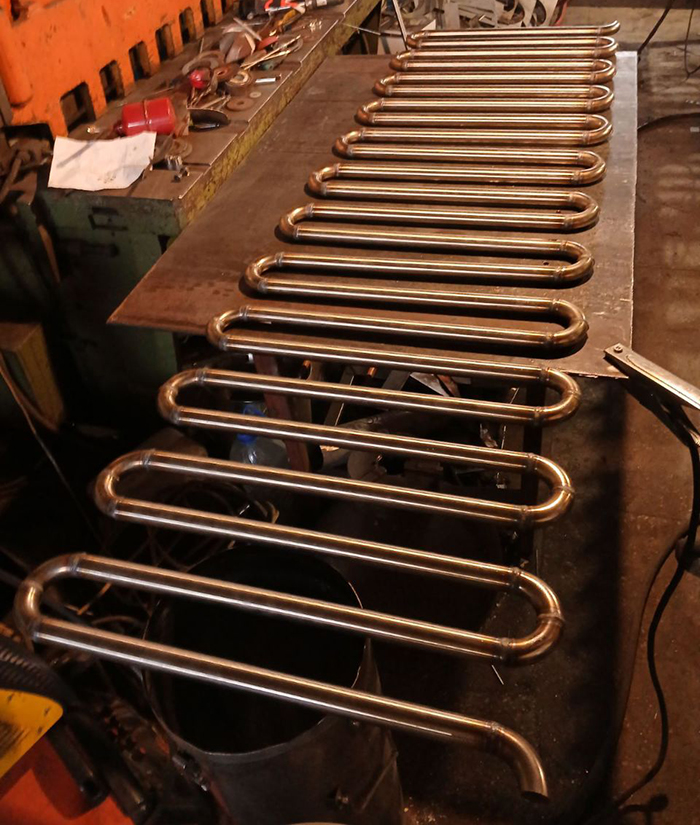

Spiral and flat coils
The company "Rose of the Winds" manufactures two main types of titanium coils:
.jpg) |
Spiral (screw) heaters are compact, installed vertically or horizontally, and take up minimal space in the bathtub. They are ideal for uniform heating or cooling of the solution.
Flat (single-plane) – ideal for long galvanic baths or anodizing lines where uniform heating of large surfaces is required.
They can be easily positioned along a wall or bottom.
Both designs are custom-made to customer specifications. Designs can be tailored to operating pressure, temperature, and required heating power.
|
♦

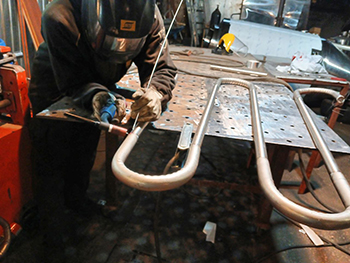

Quality argon welding is a guarantee of reliability
Titanium welding is a technologically complex process. Any oxygen or moisture entering the weld zone will result in brittleness of the weld.
At Windrose, welding is performed exclusively in a protective argon environment using special technologies:
♦ Complete protection of the welding zone from the outside and inside.
♦ Use of high-purity argon (99.99%) and modern TIG devices.
♦ Quality control of each seam – visual, capillary and hydraulic tests.
♦ This ensures that the seams on the coils remain sealed even after years of use, and the risk of leaks is reduced to zero.
Titanium coils "Rose of the Winds" are used for:
♦ heating and cooling of solutions in galvanic and anode baths,
♦ maintaining the temperature of the electrolyte in galvanizing, chromium plating, nickel plating lines,
♦ work with chlorine-containing environments and concentrated acids,
♦ thermal control in the production of semiconductors, batteries, and special chemicals.
♦ Titanium is irreplaceable where steel or copper deteriorates after just a few months.
We produce coils according to individual sizes:
we select the pipe diameter and the pitch of the turns for optimal heat transfer,
we take into account the configuration of the bath, the points of supply and discharge of the coolant,
We calculate working loads to eliminate the risk of deformation.
It is possible to supply both individual coils and ready-made kits for the entire line.
Durability and savings
Although titanium coils are more expensive than steel ones, their service life is 5-10 times longer. This means:
less downtime for equipment replacement,
lower costs for disposal of old coils,
stable product quality due to constant solution temperature.
The payback period is usually 1–2 years, after which operation becomes practically free.
By choosing titanium coils of our brand, you receive:
♦ Certified Grade 2 or Grade 5 titanium,
♦ professional argon welding,
♦ quality control at every stage,
♦ technical support and assistance in selecting a solution.
We supply equipment throughout Ukraine and abroad, providing warranty and service.
Titanium coils from Roza Vetrov provide reliability, durability, and cost-effectiveness for your production.
