with a productivity of 2000 liters for one cooking


Calculation of the cost of a craft brewery:


brewery capacity: 2000 liters
cookhouse price: 23130 $
CCT price (1 pc.): 6330 $
number of CCT: 2 шт.
CCT cost: 12660 $
hydrocyclone price: 4 635 $
hot water tank price: 2290 $
ice water tank price: 2360 $
wort flow cooler: 2100 $
CIP Wash Price: 3330 $
SIP station: 4950 $
crusher price: 840 $
The cost of this configuration of the brewery: 56 295 $



Technical parameters of the brewery:


Wort output in one cooking, l 2000
Volume of the brewing vat, l 3000
The volume of the filter tank, l 3000
Heating power, kW 100
Pump productivity, m3 / h 42
Mixer Parameters 30 rpm
180 n / m
Baking powder parameters 3,5 rpm
420 n / m


Sizes of brewery units:


Diameter of piping, mm 42
Diameter of the cooker, А 1700
Diameter of the filter tank, B 1820
Hob height C 3500
Distance between vats, D 1000

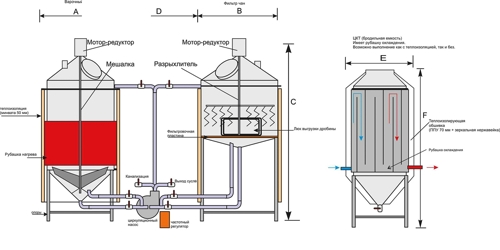

Schematic diagram of the brewery:


Warning;) All equipment presented to your attention is produced by forces and at the production facilities of ROSA VETROV ™

Each product (its project) is not a dogma!

According to your idea, we will design and manufacture unique equipment that meets the ultimate goal:

♦ productivity - from home to industrial;

♦ automation of the entire process of manufacturing the final product (we invest in metal the mind and independence in the production of the planned product, which eliminates chance and the human factor in its serial production!)

♦ design;

♦ additional functions;

♦ unique modifications and "your brand chips"

♦ ventilation system of industrial premises!

♦ We do everything responsibly, on a turn-key basis!


Craft beer - craft beer!


A small, mobile craft brewery that brews commercial beers is bottled in kegs and bottles. Recipes are being developed for their scaling in large breweries.

Today, the word CRAFT has become very fashionable, and it is used to highlight exclusive product categories. So there appeared craft whiskey, craft wine, craft cheeses, NEW !!! Diet craft molecular smoking! - will be in all pubs soon!

Previously, it was customary to promote their products as environmentally friendly, and now - as craft. Marketers have successfully used this, easily changing the adjectives “designer” and “exclusive” to “craft”. This is not always appropriate, but there is no direct prohibition on this.


2000 liter brewing order


The brewing procedure of the mini-brewery is intended for brewing malt wort with the infusion method of mashing any kind of beer. The full volume of cooking vats is 3200 liters, which allows you to cook high-density wort, or get up to 2600 liters. ready wort of low and medium density.

The cooking order in the basic configuration consists of two units: mash-wort boiler and a filter tank. The cooking order can be three-unit - with the addition of whirlpool, can be four aggregate with the addition of a hot water tank or a separate boiling boiler and other containers at the request of the client.


Fermentation shop from 5 CCT brewery for 2000 liters



The brewing procedure for 2000 liters of finished wort may include:

  • Mash-brewing boiler with a volume of 3200 liters;
  • The filter tank with a volume of 3200 liters;
  • Virpul 3200 liters;
  • A boiling boiler with a volume of 30-50% of the main mash;
  • Piping tubs;
  • Mash / wort transfer pump (s);
  • The control panel for the cooking process.
  • Work platform with stairs.


Equipment for mini brewery units:
Mash boiler:


Mash-brewing vat is made of food grade stainless steel AISI-304 with a high degree of polishing (to a mirror finish). Welds are sufficiently polished. The chan has a mash / wort heating jacket over the entire diameter and cone of the cooking container. The heat carrier is food propylene glycol. Heat carrier heating is provided by easily replaceable electric heaters. Electronic heating control with a system of protection against coolant overheating and wort burning. The heating jacket is thermally insulated with polyurethane foam and covered with an outer shell of food-grade stainless steel.

Mash-brewing vat is equipped with a gear motor with a mash stirrer, inspection hatch, lights inside the vat, a control panel for temperature breaks, a washing head with a connection to the SIP-sink.

The chan is intended for mashing grains with the infusion method and boiling wort with hops. If there is an additional vat, the mash may also be wiped off using the welding method. Chan can also heat or boil water to clean all brewery equipment.





  • Mash agitator with gear motor;
  • Interior lighting;
  • The washing head (rotational);
  • Inspection hatch;
  • Ventilation duct with a gate.
  • Thermal insulation (polyurethane foam).



Filter Chan:


The filtration vat is made of food grade AISI-304 stainless steel with a high degree of polishing (to a high gloss). Welds are sufficiently polished. Chan has a second bottom of the same filter plates. Removable filter plates. The filtration tank is thermally insulated with polyurethane foam and covered with an outer shell made of food-grade stainless steel.

The filtration tank is equipped with an irrigation circuit for washing the pellet, a gear motor with a baking powder, an adjustment of the revolving agent of the baking powder (option), a viewing hatch, a light inside the tank, a washing head with a connection to the SIP sink, and a side hatch for unloading the pellet.





  • Baking powder
  • Interior lighting;
  • Contour of irrigation of grains;
  • The washing head (rotational);
  • Inspection hatch;
  • Hatch unloading grains;
  • Ventilation duct with a gate.
  • Thermal insulation (polyurethane foam).



Pipelines and pump:

  • Pipelines with a diameter of 34 mm;
  • Flow direction valves (9 pcs);
  • Viewing glass flask;
  • Mash / wort transfer pump;
  • Water inlet;
  • Exit to the sewer;
  • Wort exit;
  • Return of cleaning fluid to the SIP station.



Cooking control panel:



  • General switch;
  • Wort / wort temperature controller;
  • Pump switch;
  • The frequency regulator of revolutions of the pump;
  • Mixer and cultivator revolutions regulator (additional option);
  • Interior light switch.
  • Hot water tank temperature controller (optional).
